Application and function
Processing objects include: beans, seeds, traditional Chinese medicine, dried nuts, corn, wheat, rice, peanut, sunflower seeds, buckwheat, millet, etc.
It is specially used to remove the moldy particles, shriveled particles, empty shells, moth eaten particles, immature particles, not full particles and other impurities in materials.
The equipment has a certain function of removing stones, which can remove stones from materials.
Principle and applicability:
The Gravity Separator is a kind of equipment which is sorted according to the specific gravity difference between materials and impurities. It includes frame, wind system, vibration system,gravity table, etc.
When the machine is working, the materials are mainly affected by two forces: wind force and vibration friction force. Under the action of wind force, the materials are in suspension state, the light ones are on the top and the heavy ones are on the bottom, the materials are stratified, the vibration of gravity table makes the heavy products on the bottom climb up, and the light impurities on the top flow down under the action of wind force, so as to complete the separation of materials and impurities.
The machine is suitable for the occasion where the fine separation density of particles is similar. Compared with the Air screen cleaner with gravity table, its precision is obviously higher, but the output is relatively low, so it is generally not suitable for the direct processing of raw materials.
Technical advantages:

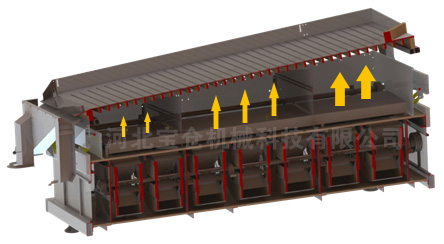

1.Air Chamber Design
Three independent air chambers, which make the processing platform present three processing sections: layered area, stable area and discrimination area, so as to achieve the best effect of material separation on the gravity table.

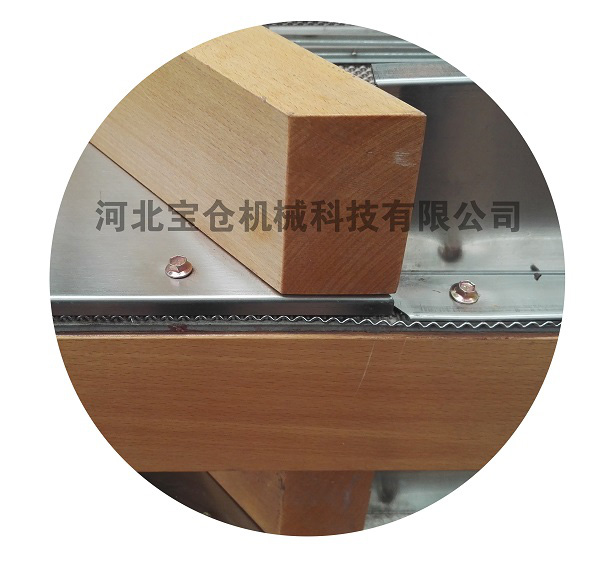

2.Gravity Table Design
The wooden frame is made of precious wood, which has excellent impact resistance and firmness. The screen surface is made of 304 stainless steel mesh of food grade,very good wear resistance,strength and long life.
3.Vibration design optimization
The base adopts integrated design, good stability, and accurate counterweight balance scheme, stable and perfect zoning effect.
4.Side exit expansion design
If less impurity in the grain, the side flow grain expansion function can be added, which can significantly improve the screening efficiency.

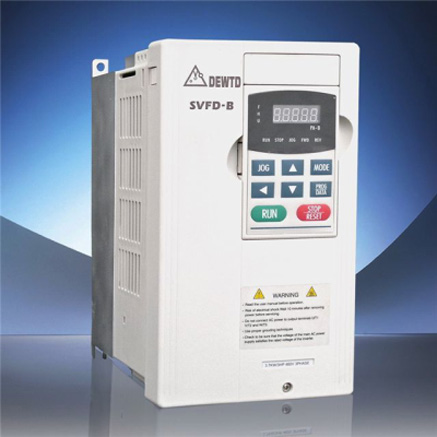

5.Fan frequency control (non standard)
With frequency converter, it can adjust and control the air volume of the gravity table, and realize the control of grain flow state; especially suitable for small grain materials and frequent variety change.
6.Automatic stone removal function (non standard)
This function can automatically remove the stones in the raw materials.
Optional models
5XZ-8

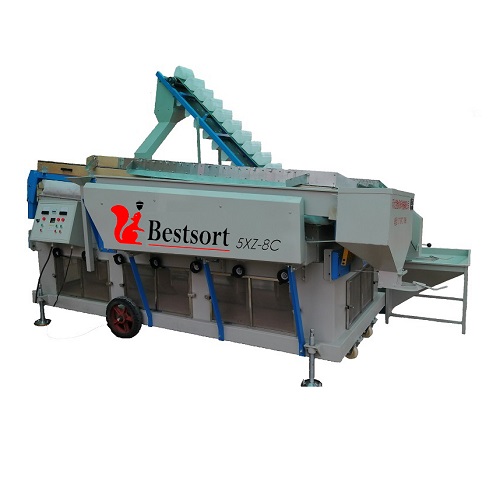

5XZ-8C
5XZ-10

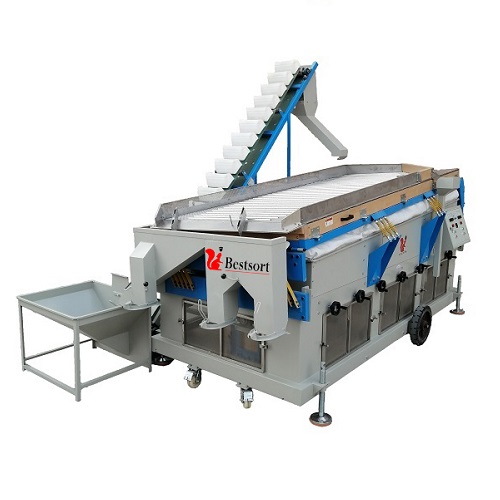

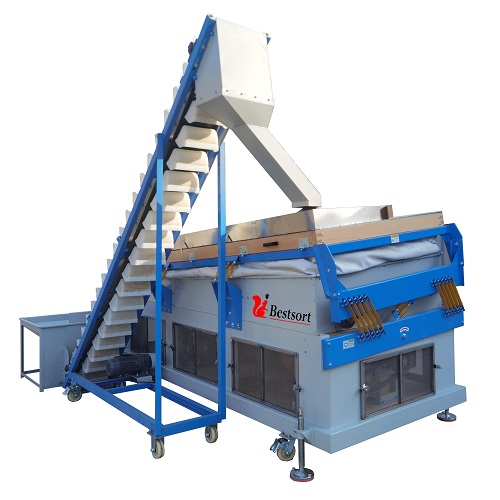

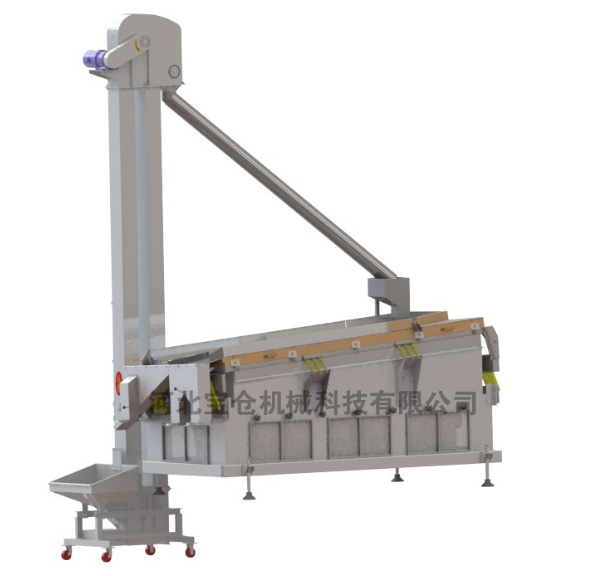

Combination for production line:

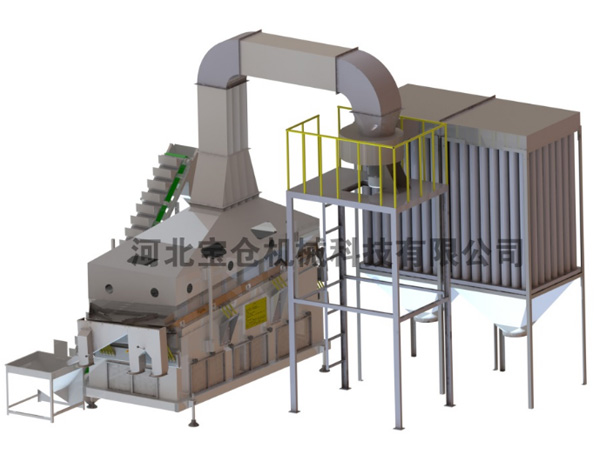

Equipped with complete dust remover system:
Gravity separator with suction cover:

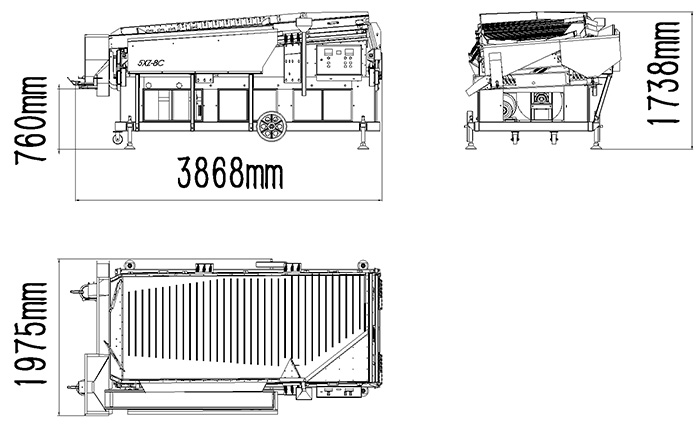

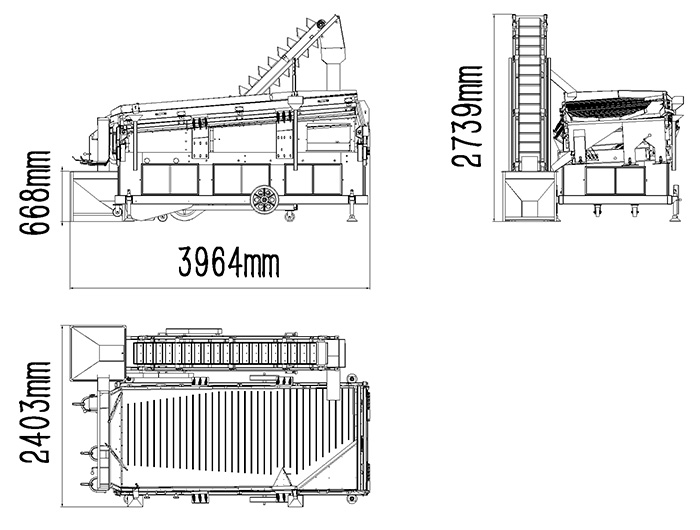

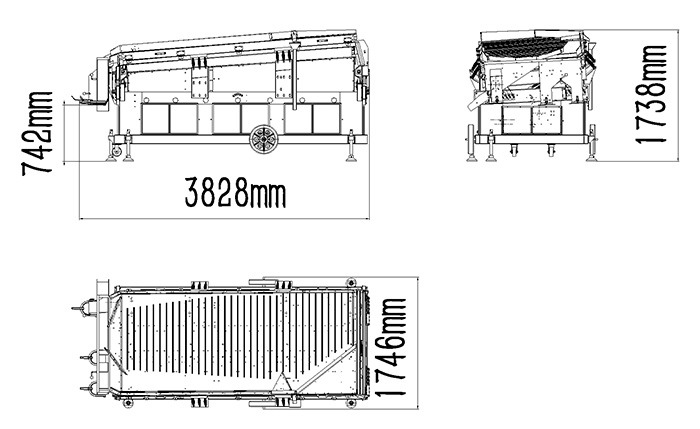

Products size
